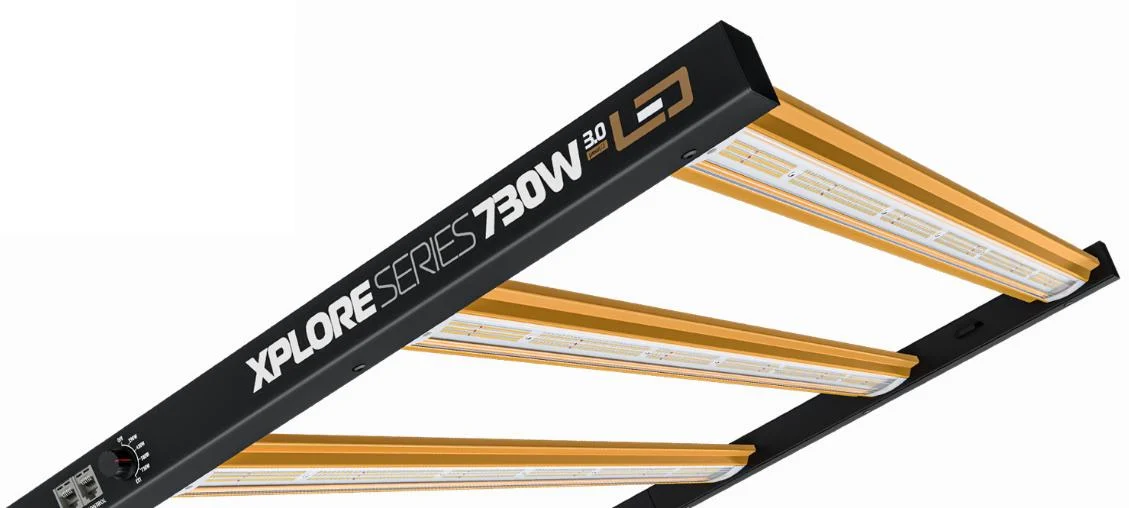

The DimLux Xplore Series 730W LED 3.0 represents the evolution of the famous Xplore line: a professional, high-efficiency LED lamp built to offer top-class performance at an affordable price.
The new version introduces significant improvements in efficiency, light distribution and durability, raising efficacy to 3.0 µmol/J and light output to 2197 µmol/s.

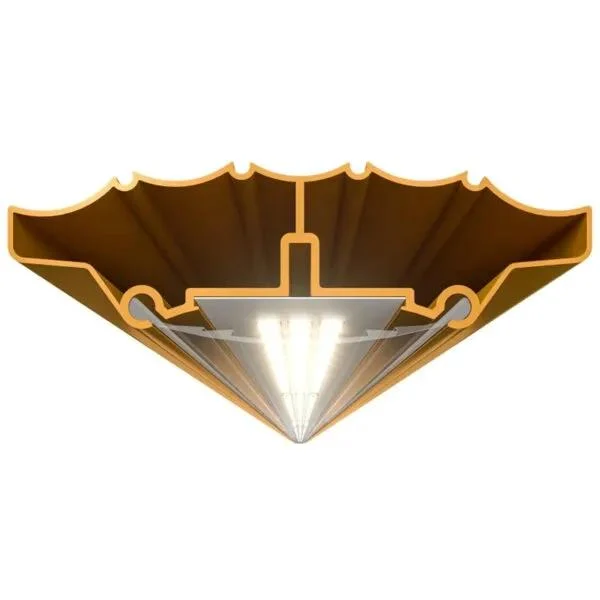

The virtually unbreakable lens with integrated Light Benders reduces light dispersion and concentrates more light on the plants, while the asymmetrical LED arrangement increases the amount of light distributed to the edges of the growing area by up to 80 %, improving uniformity and final output.
Dimmable with 0-10V control
The driver is fully integrated into the structure, installation is simple and the system is compatible with optional UV-A and Far Red modules.
Combined with the DimLux Maxicontroller, it becomes a fully automated, future-ready lighting system.
Key features
-
System luminous efficacy: 3.0 µmol/J
-
Total PPF: 2197 µmol/s
-
Unbreakable lens with integrated Light Benders
-
Uniform distribution thanks to asymmetrically arranged LEDs
-
Integrated LED driver
-
IP68 Quick-Lock power connector
-
Compatible with additional UV-A and Far Red modules
-
DimLux Maxicontroller support for advanced control or 0-10V controller
-
Onboard dimming: 290W / 430W / 580W / 730W
-
Official 5-year warranty
Spectrum and light output
The spectrum combines full-spectrum white LEDs and red LEDs, ensuring optimal output in all phases:
Vegetative phase:
High blue light for compact growth and narrow internodes.
Flowering phase:
The red component supports the production of dense, resinous, high-yielding flowers.
Available upgrades:
-
UV-A module for intensifying resins and terpenes
-
Far Red module for improved morphogenesis and flowering phase
Package contents
-
1 × DimLux Xplore Series 730W LED 3.0
-
Integrated LED driver
-
Onboard 0-10V dimming
-
IP68 Quick-Lock connector
-
Mounting accessories
(Rope Ratchets not included)
Technical Specifications
| Parameter | Value |
|---|---|
| Power | 730W |
| PPF | 2197 µmol/s |
| Efficiency | 3.0 µmol/J |
| Spectrum | Full-spectrum White + Red |
| Dimming | 290W / 430W / 580W / 730W |
| Driver | Integrated |
| Upgrade | UV-A / Far Red |
| Optics | Shatterproof Lens + Light Benders |
| Distribution | Asymmetrical LEDs (+80% light at the edges) |
| Connector | IP68 Quick-Lock |
| Compatibility | DimLux Maxicontroller |
| Structure | 6-bar fixture |
| Installation | Lightweight, easy to hang |
| Warranty | 5 years |
Advantages
-
Highest efficiency in its class (3.0 µmol/J)
-
Even distribution over the entire cultivation area
-
Unbreakable lens for long-term durability
-
UV-A and Far Red upgradeable
-
Advanced control via Maxicontroller
-
Perfect for professional growers and high-yield setups
