The ThinkGrow Model-H Plus 720W is a professional LED indoor growing lamp designed for high light intensity applications(High PPFD) and vertical farming systems.
The 115×150 cm housing accommodates 3368 high-efficiency top-bin LEDs, with a total output of 720 watts exceeding 2016 μmol/s.
It offers total spectrum control with four independent channels – UV, White, Far Red – to create the ideal ‘light recipe’ for each growth phase.
The system is compatible with TrolMaster’s Hydro-X (HCS-1), Hydro-X Pro (HCS-2) and Hydro-X Plus (HCS-3) controllers via LMA-T adapter, allowing control of up to 256 daisy-chained lamps.
The patented plug-and-play design with modular LED bars simplifies installation and reduces maintenance time, making the Model-H Plus one of the most advanced solutions for professional growing.

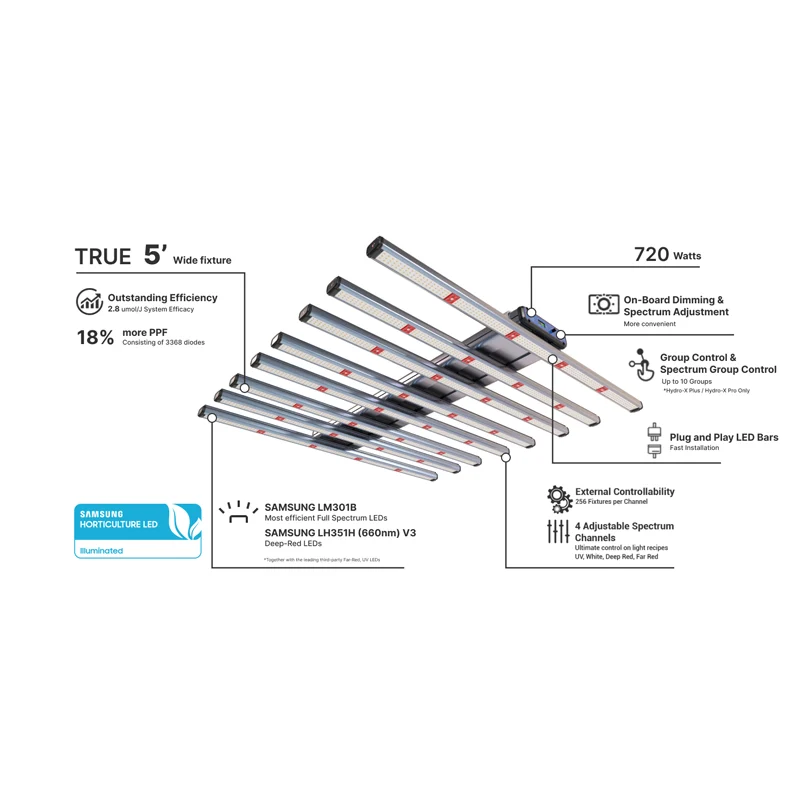

Key Features
-
720 W input power with efficiency > 2.8 μmol/J
-
Fully adjustable spectrum: UV, White, Deep Red and Far Red
-
High light intensity: > 2016 μmol/s PPF
-
Group control of up to 256 lamps (via LMA-T)
-
Compatible with TrolMaster Hydro-X / HCS-2 / HCS-3
-
High-quality steel and aluminium, IP56
-

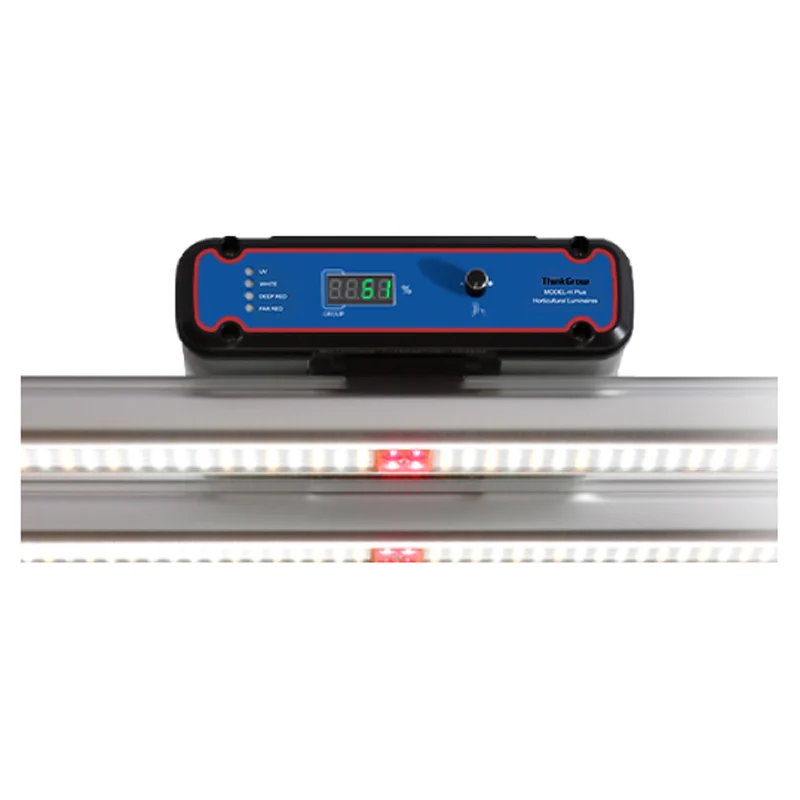

On-board dimming or control via software
-

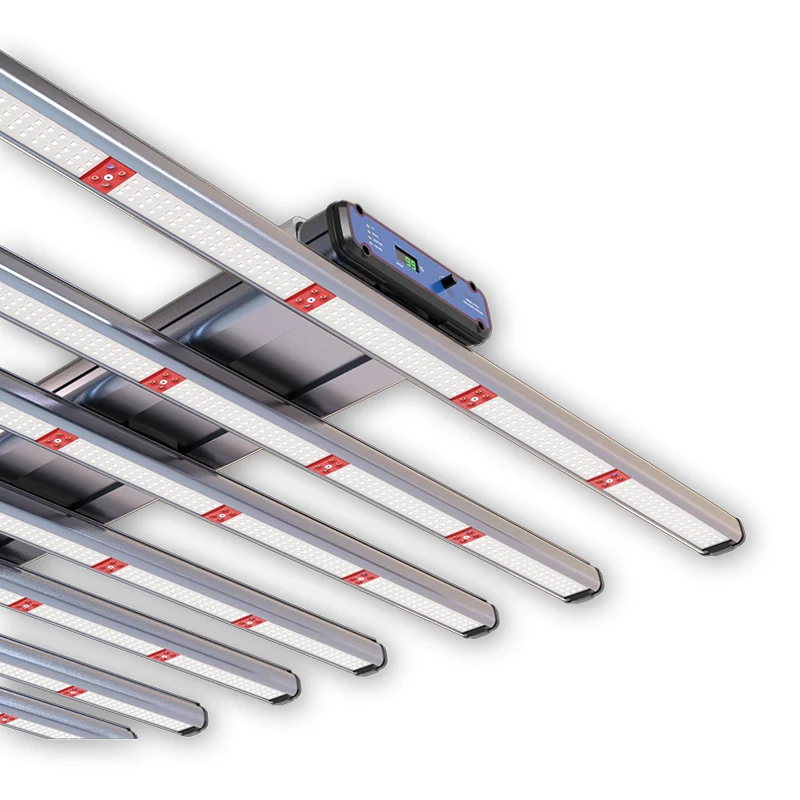

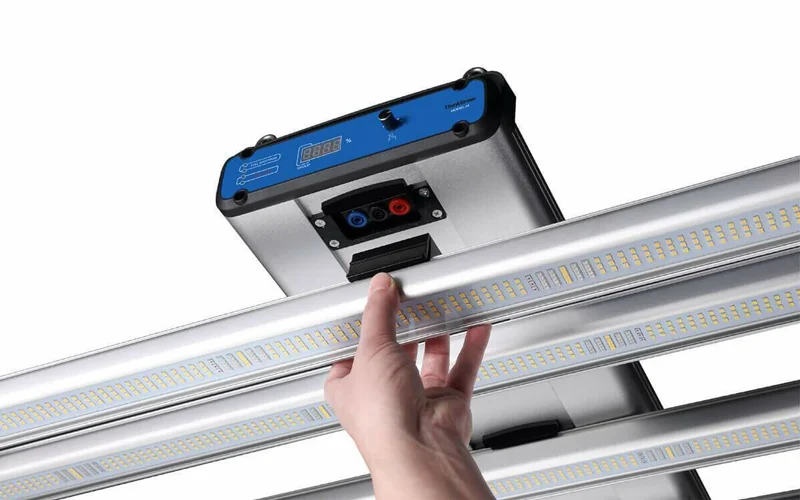

Plug-and-play modular bar design
-
Dynamic spectrum for vegetative and flowering phases
-
Service life L90 > 54,000 hours
Package contents
-
1 × Model-H Plus main body
-
8 × 5′ LED Light Bars (Model-H Plus Light Bars)
-
1 × Model-H Plus drivers
-
2 × Driver Hangers
-
1 × 3.6 m (12 ft) 240V power cable
-
1 × 4-pin 4.8 m (16 ft) waterproof extension cable
Technical Specifications
-
PPF: > 2016 μmol/s
-
Efficiency: > 2.8 μmol/J
-
Input power: 720 W
-
Power factor: ≥ 96%.
-
Input voltage: Autosensing 100-277 V AC
-
Current consumption:
-
6.23A @ 120V
-
3.61A @ 208V
-
3.09A @ 240V
-
2.71A @ 277V
-
-
BTU: 2456.74 BTU/h
-
Degree of protection: IP56
-
Mounting: ≥ 15 cm above the canopy
-

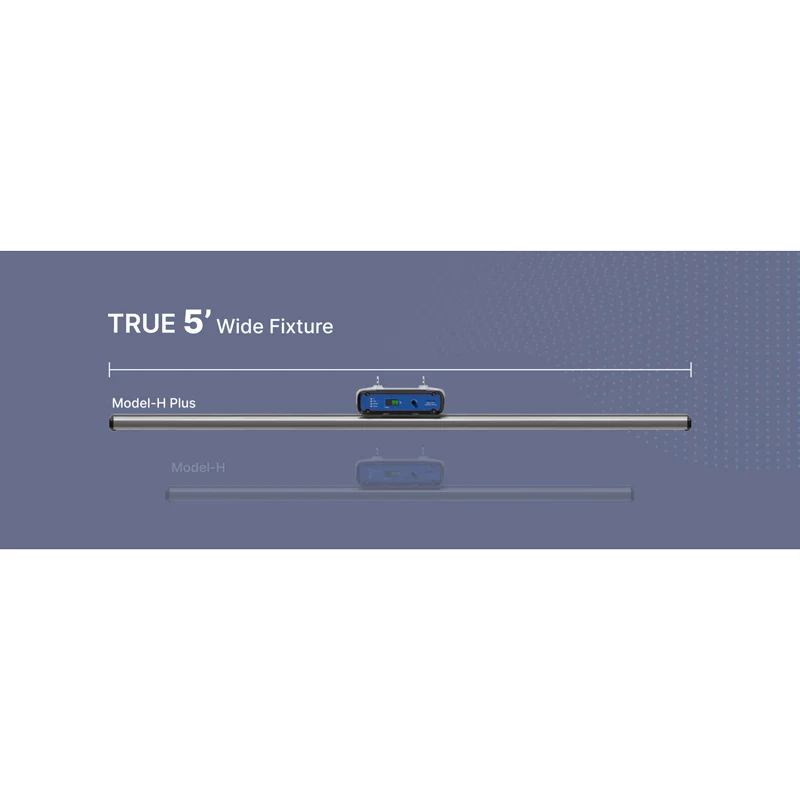

Dimensions: 115.8 cm (W) × 105.3 cm (D) × 11.3 cm (H)
-
Weight: 19 kg (41.8 lb)
-
Service life (L90): > 54,000 hours
-
Warranty: 5 years standard
Controllability and spectrum
-
4 independent channels: UV, White (full spectrum), Deep Red, Far Red
-
Manual adjustment or via TrolMaster Hydro-X (HCS-1)
-
Far Red post-illumination function (10-15 min) to accelerate flowering
-
Advanced spectrum and intensity control (only on HCS-2 / HCS-3)
-
Up to 256 lamps can be controlled in a chain with LMA-T adapter
Advantages
-
Full spectrum and intensity control
-
Higher photosynthetic yield due to high efficiency
-
Suitable for professional indoor and vertical farming
-
Full integration with TrolMaster Hydro-X systems
-
Modular design for easy installation and maintenance
