ORTOLED – S LINE FOLDABLE PRO SAMSUNG PROFESSIONAL BAR LIGHT (2.9 µmol/J) | 420W

Description

ORTOLED has added the new ORTOLED S LINE PRO FOLDABLE 420W 2.9 umol/J lamp to its catalogue – the perfect lamp for large cultivation areas in professional grow rooms.

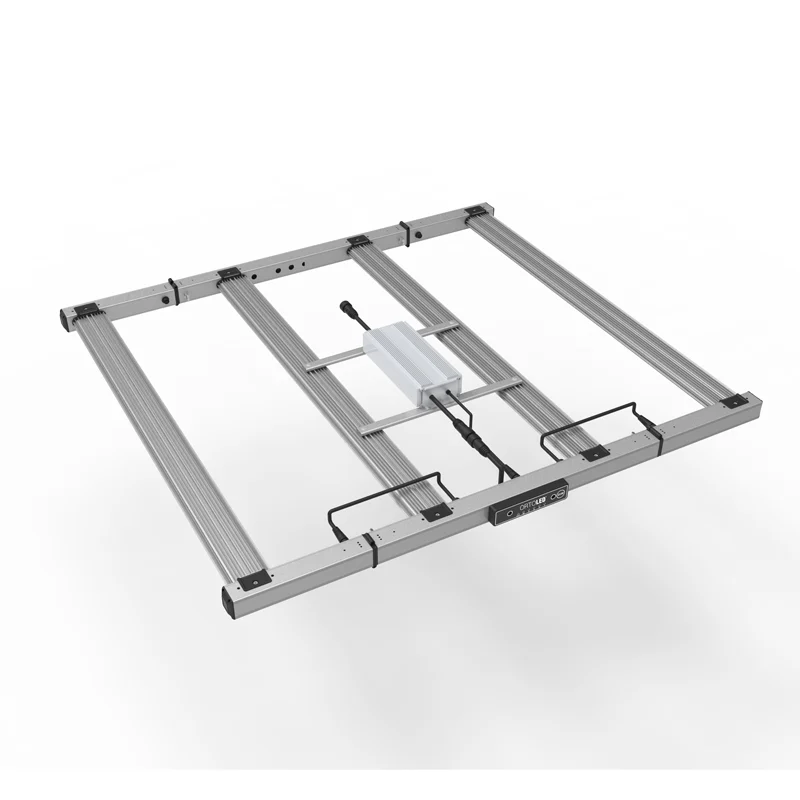

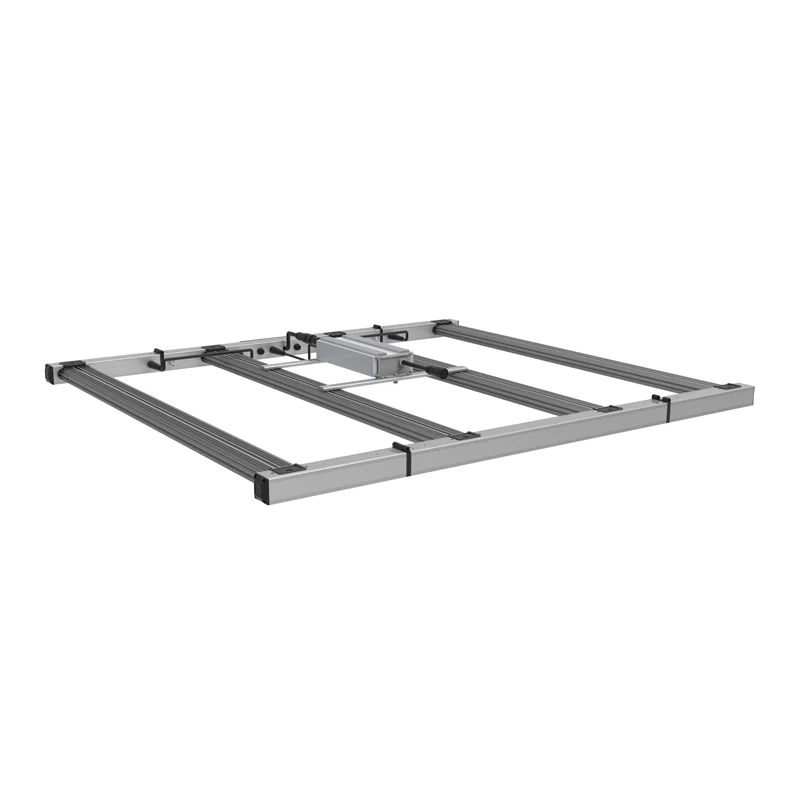

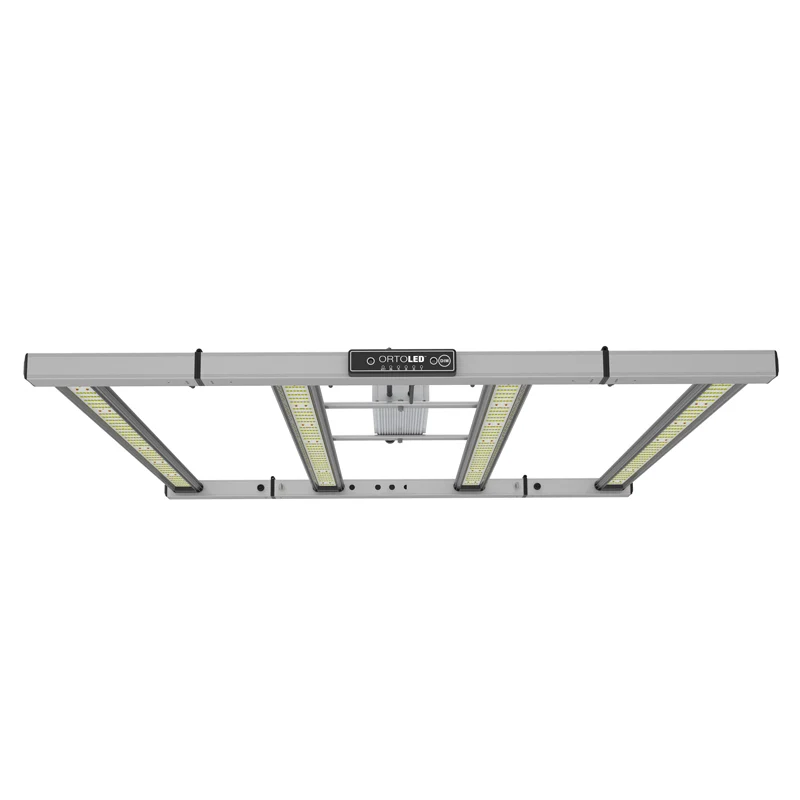

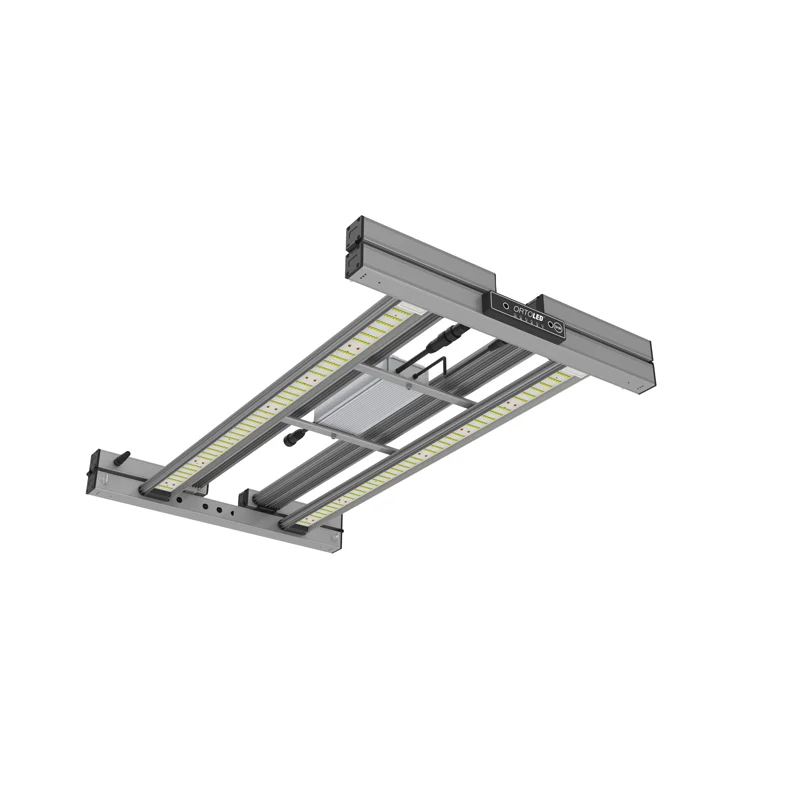

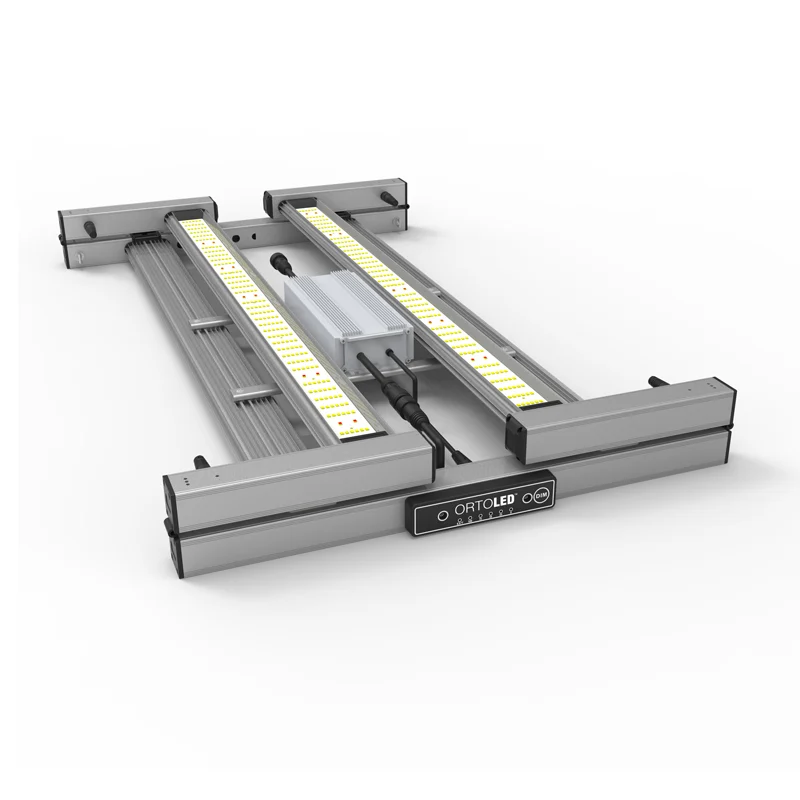

The ORTOLED S LINE PRO Foldable lamp is a lightweight and easy-to-handle unit that produces high levels of PPF and a photonic efficiency of 2.9 umol/J

The ORTOLED S Line Foldable lamp is constructed using Samsung SMD2835 4000K LEDs and 3W SMD3535 660nm LEDs, guaranteeing excellent output and superb light penetration without overheating the apical parts of the plants.
The structure is made entirely of aluminium, making it lightweight and corrosion-resistant.

The Ortoled S Line Foldable is built using top-quality Sosen® power supplies with an integrated Ortoled Step Control dimmer, which allows brightness to be adjusted in steps of 0–25%–50%–75% and 100%, so as to support the plant’s growth and flowering phases without wasting electricity.

It has an IP65 protection rating with ultra-transparent resin to protect the LEDs, ensuring that the light output remains unchanged.

Total Agro Spectrum
The combination and colouring of the installed LEDs cover all the wavelength bands required by the plant, ensuring optimal light output from growth through to flowering.

Static-cooling circuit board and Sound Zero system
The new Sound Zero technology, designed for the Ortoled S Line series, ensures excellent dissipation of the heat generated by the LEDs. As a result, the lamp does not require an additional cooling system. There will therefore be no external fans. Thanks to the Sound Zero system, the result is a high-performance and extremely quiet lamp.

Technical Specifications Ortoled S Line FD 2.9 µmol/J:

• Efficiency: 2.9 µmol/J
• Input voltage:AC 110–277 V, 50/60 Hz
• Power consumption: 420 W
• Minimum distance: 30–60 cm
• Aluminium housing
• Light distribution: 120°
• Light source: Samsung SMD2835 4000K LED + 3W SMD3535 660nm
• Dimmable: OFF–25%–50%–75%–100% with Ortoled Step Control dimmer
• Weight: 13–15 kg
• Dimensions: 1000 x 900 x 90 mm
• Spectrum: Total Agro
• Operating temperature: -20°–40°
• Light control: via external S Control controller with dawn/dusk function or integrated Ortoled Step Control
• Lifespan: over 50,000 hours (lumen depreciation of +/- 3% at 100,000 hours).
• Warranty: 3 years

Items included in the pack

• 1 x Ortoled Sound Zero LED panel
• 4–6 x LED strips
• 1 x Power cable
• 1 x K Control daisy-chain/control cable
• 2 x Carabiners for suspension
• 1 Sosen power supply

Key Features of the Ortoled S Line FD 2.9 µmol/J

• High efficiency: 2.9 µmol/J
• High-quality Sosen LED driver
• Protective coating technology using high-transparency resin
• Total Agro spectrum
• Improved light diffusion and uniformity, and a ‘Sound Zero’ system
• Fully dimmable
• Easy-to-use plug-and-play installation
